MailForge — HTML Email QA Workspace

Scope

A local desktop tool for authoring, previewing, validating, comparing, and exporting evidence about HTML email, designed and built independently, outside of any employer engagement.

Role

Independently designed, built, and tested MailForge end to end: architecture, validation engine, compatibility guidance, and QA workflows, including the fictional fixture used for these portfolio screenshots.

MailForge is a local-first desktop application for authoring, previewing, validating, comparing, and exporting evidence about HTML email. It was built independently, outside of any employer engagement, and not commissioned, endorsed, or produced for any client.

I built MailForge after seeing how fragmented HTML email QA can become across responsive previewing, accessibility checks, compatibility guidance, link validation, version comparison, and reporting. I wanted a single local workspace where I could inspect and validate email code without sending source content to a cloud service by default.

Author and preview

The Editor tab is a CodeMirror 6-based HTML editor (syntax highlighting, search, history, and bracket matching) paired with a Preview tab that renders the same document inside a sandboxed srcdoc iframe with an empty permission set and its own restrictive content-security policy. Editor and Preview are separate, mutually exclusive tabs rather than a split view, and the preview treats even the user’s own imported email HTML as untrusted content: no scripts, forms, or navigation are permitted inside it.

Responsive QA

The preview supports five viewport presets (Desktop, Tablet portrait/landscape, Mobile portrait/landscape), custom dimensions from 240–2560px wide, orientation toggling, bounded zoom, and five color/preview modes (Light, Dark, System, side-by-side, and an approximate dark-mode inversion). This is the same reflow-and-inspect step that used to mean juggling several viewport sizes by hand.

Validation and compatibility guidance

A validation engine built on a single shared parse5 HTML parse runs 36 generic rules, covering metadata, images, links, HTML/CSS, accessibility, performance, security, and structure, and reports results by severity (Error/Warning/Suggestion/Information) and category, rather than a pass/fail badge. A separate set of 14 compatibility rules maps findings against seven named client-guidance profiles (Gmail, Outlook Desktop, Outlook Web, Apple Mail, iPhone Mail, Yahoo Mail, Thunderbird). This guidance is based on documented rendering behavior for each client, not live emulation; MailForge does not test inside an actual inbox.

Links and assets

A Links & Assets inspector extracts every link and asset reference from the document, including srcset and CSS url()/@import, and classifies each one locally (empty, relative, insecure, dangerous, placeholder, fragment, credential-bearing, oversized data URL, or CID reference) without any network activity. Verifying a link’s live status is a separate, opt-in step: a per-run consent screen names the destination before anything leaves the machine, protections against private/local/reserved addresses apply to every request and redirect, and consent is never persisted between runs.

Comparing versions

Comparison mode loads two versions of a document side by side, with a source diff (unified or two-column, with a whitespace-ignore option), a structural comparison, and a validation/compatibility difference summary, useful for confirming that a revision actually fixed what it was supposed to fix.

Exporting evidence

Findings and previews can be exported locally in five formats (PNG, JSON, CSV, printable HTML, and PDF), a way of turning an on-screen QA pass into something that can be handed off or filed, without any of it leaving the local machine.

Privacy and architecture

MailForge makes no network request during normal use, enforced by a production content-security policy (connect-src 'none'), not just a policy statement. The only network-capable feature is the opt-in link/asset verification described above. The application is split into four boundaries (main, preload, renderer, shared), with a narrow, fully enumerated, typed IPC surface (no generic ipcRenderer exposure) and Zod-validated payloads at every process boundary. Local project files (.mailforge) are versioned JSON with a migration pipeline and atomic, owner-only-permission writes. It’s built with Electron, React, and strict TypeScript, using Vite for the renderer bundle and Zustand for transient interface state.

Testing and current status

281 automated tests across 45 test files pass as of 2026-08-08, alongside passing formatting, linting, and strict type-checking, with CI packaging verified on macOS, Windows, and Ubuntu. MailForge 0.1.0 is complete and in personal local use. Public distribution (code signing, notarization, and full Windows/Linux GUI verification) is a scope decision the project has deliberately deferred, not a gap in the work.

All screenshots below use a fictional fixture email (“Northlight Supply Co., Autumn Field Collection”) created specifically for this portfolio. No real project content, client data, or unreleased material appears anywhere in MailForge itself.

Product Evidence

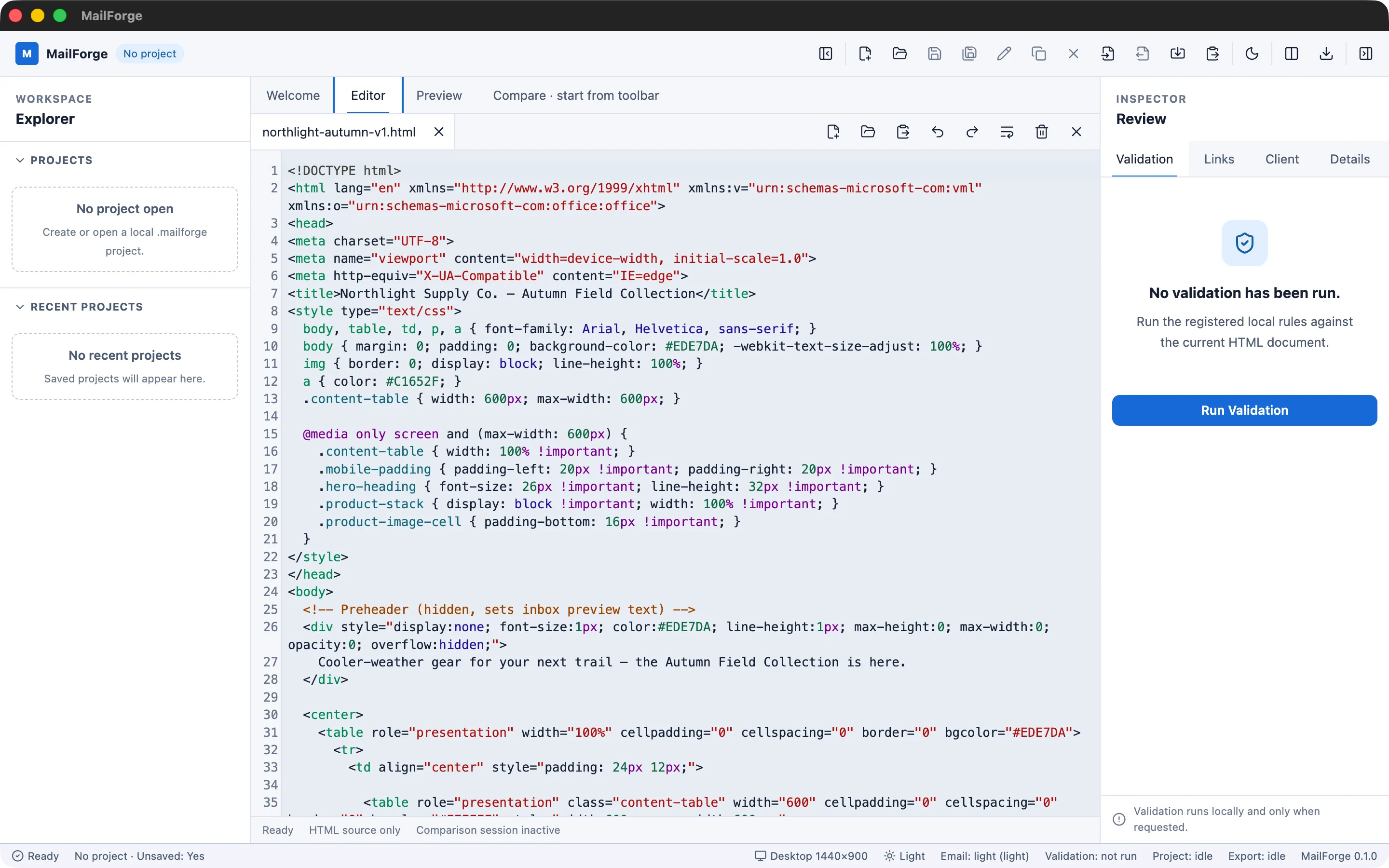

MailForge's Editor tab open on the Northlight Autumn Field Collection email's HTML source, with the explorer and inspector panels visible in the application shell. — The Editor tab, where the email's HTML source is authored and reviewed before validation.

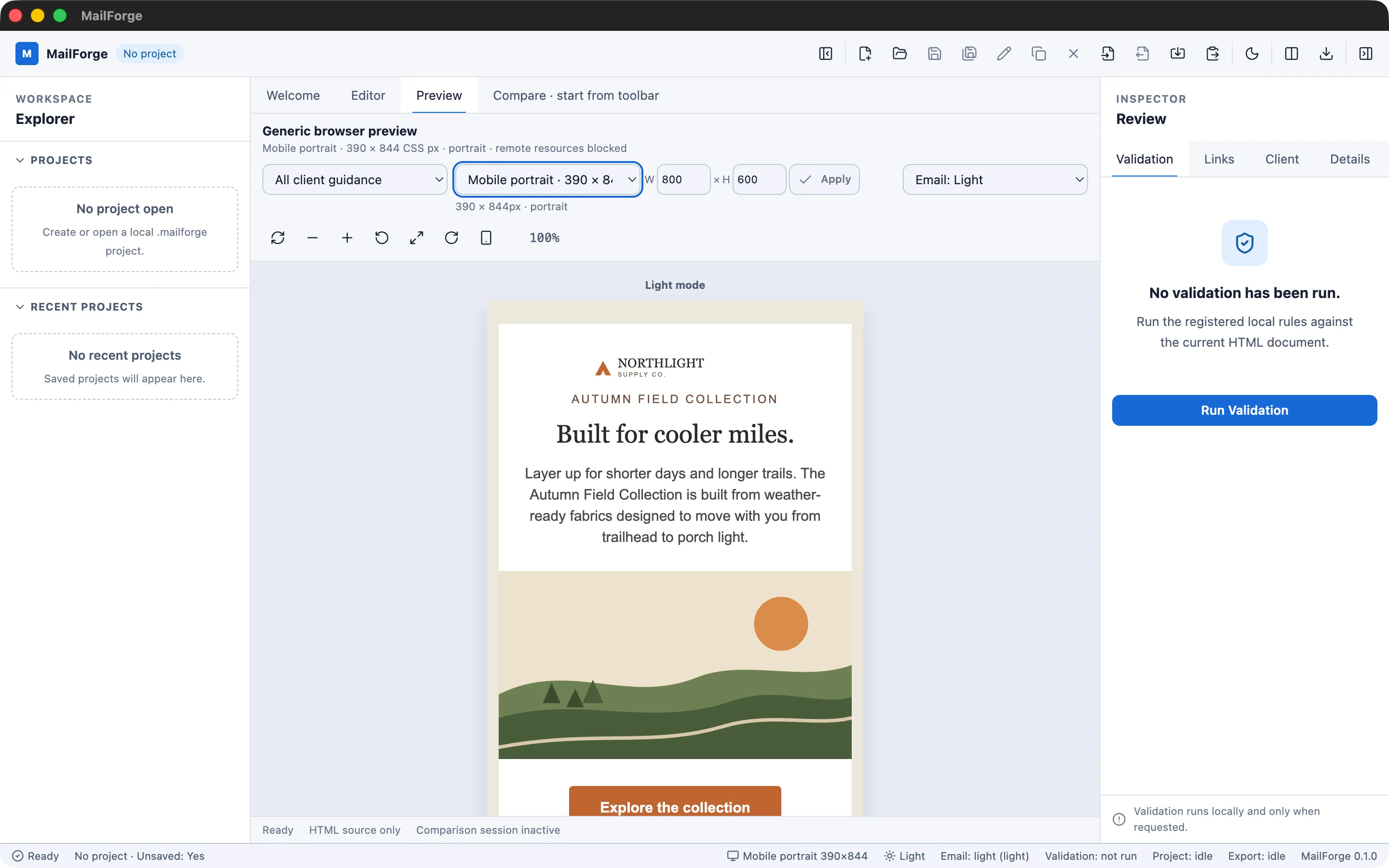

MailForge's Preview tab rendering the Northlight Autumn email at the Mobile portrait 390×844 viewport, showing the hero image, headline, and call-to-action. — Mobile preview testing at 390×844 CSS pixels — one of five built-in responsive viewport presets.

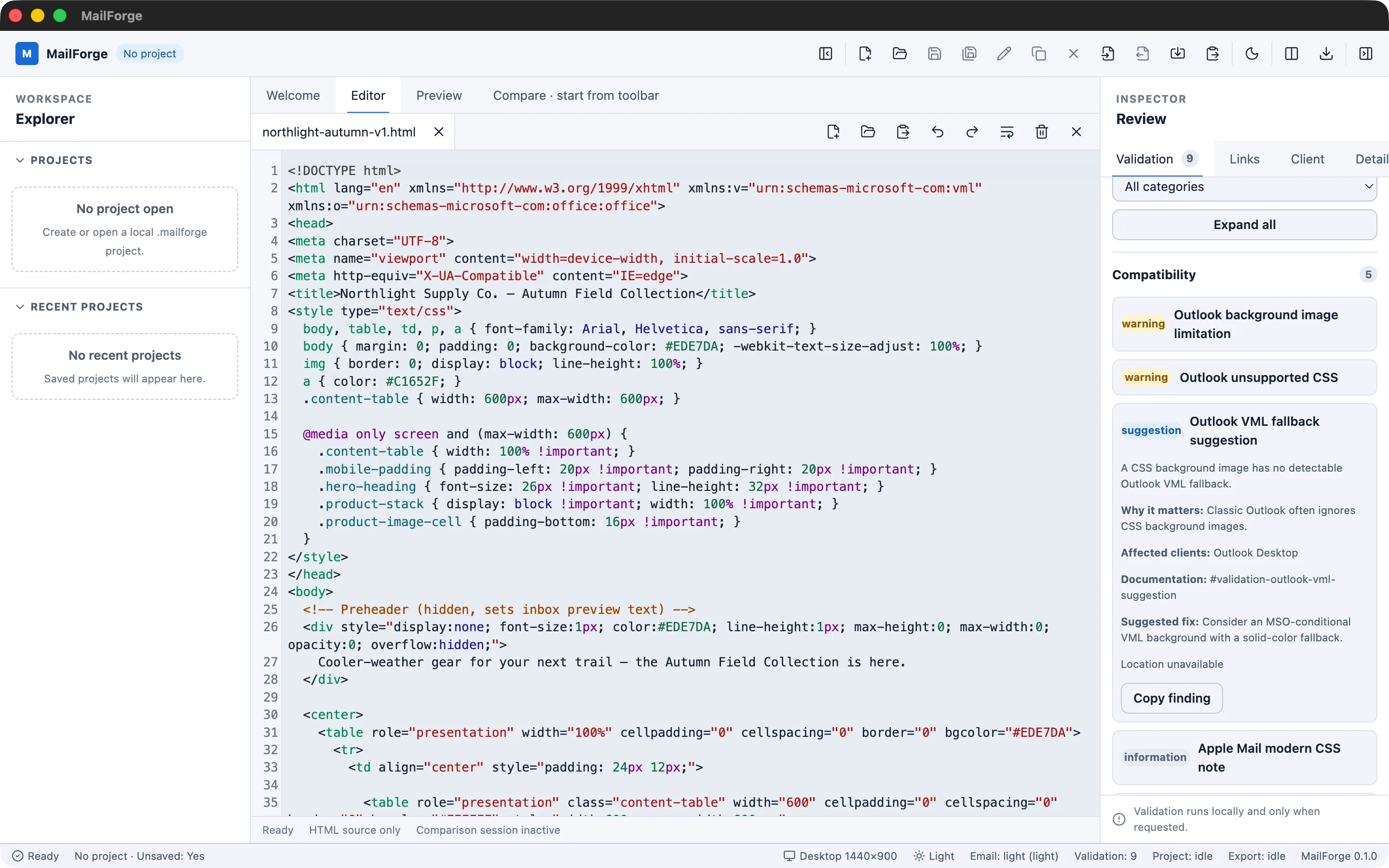

MailForge's Validation inspector showing nine findings, including an expanded Outlook VML-fallback compatibility suggestion with its rationale and suggested fix. — Nine validation findings, including expanded compatibility guidance for an Outlook VML fallback.

Additional product evidence

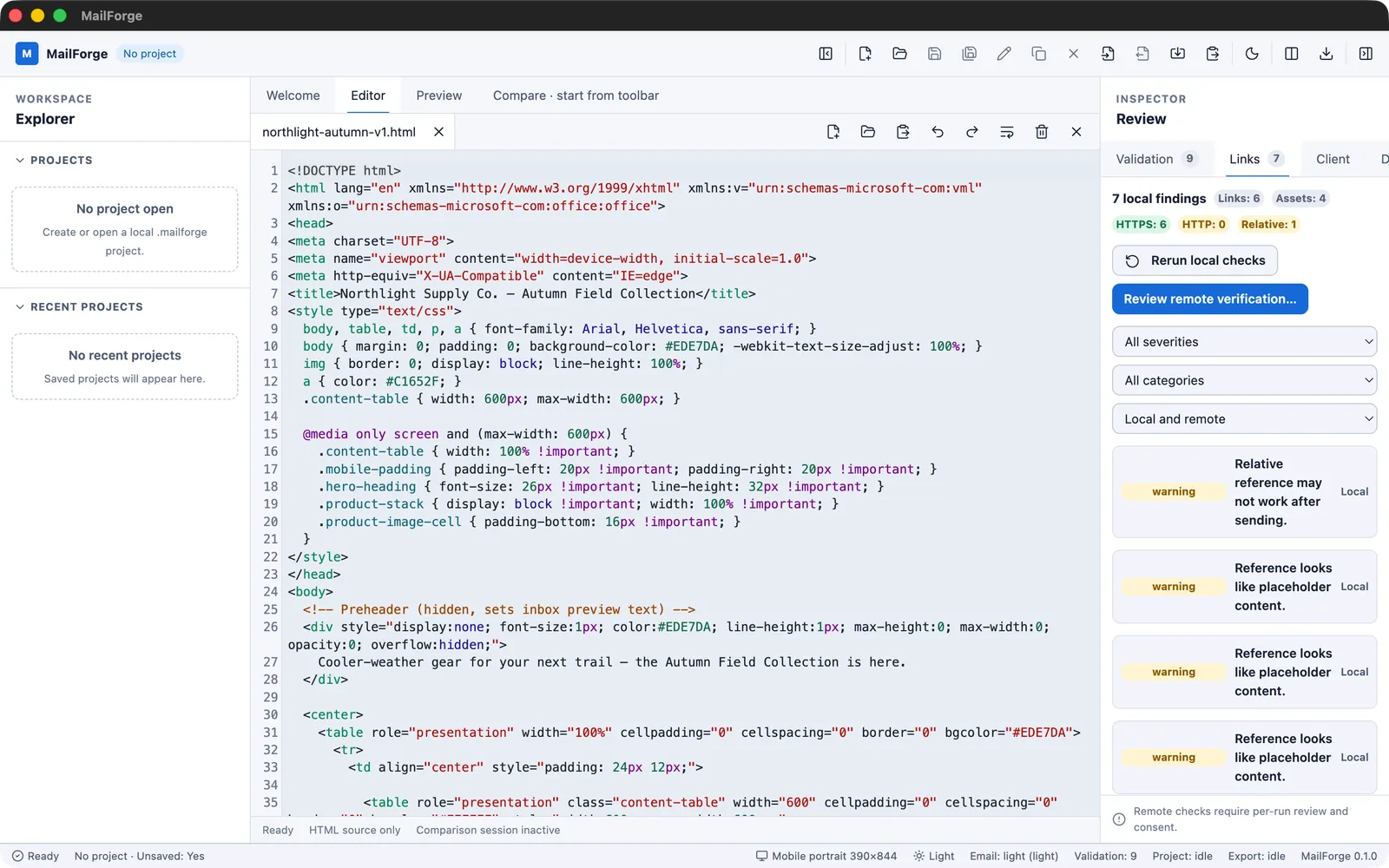

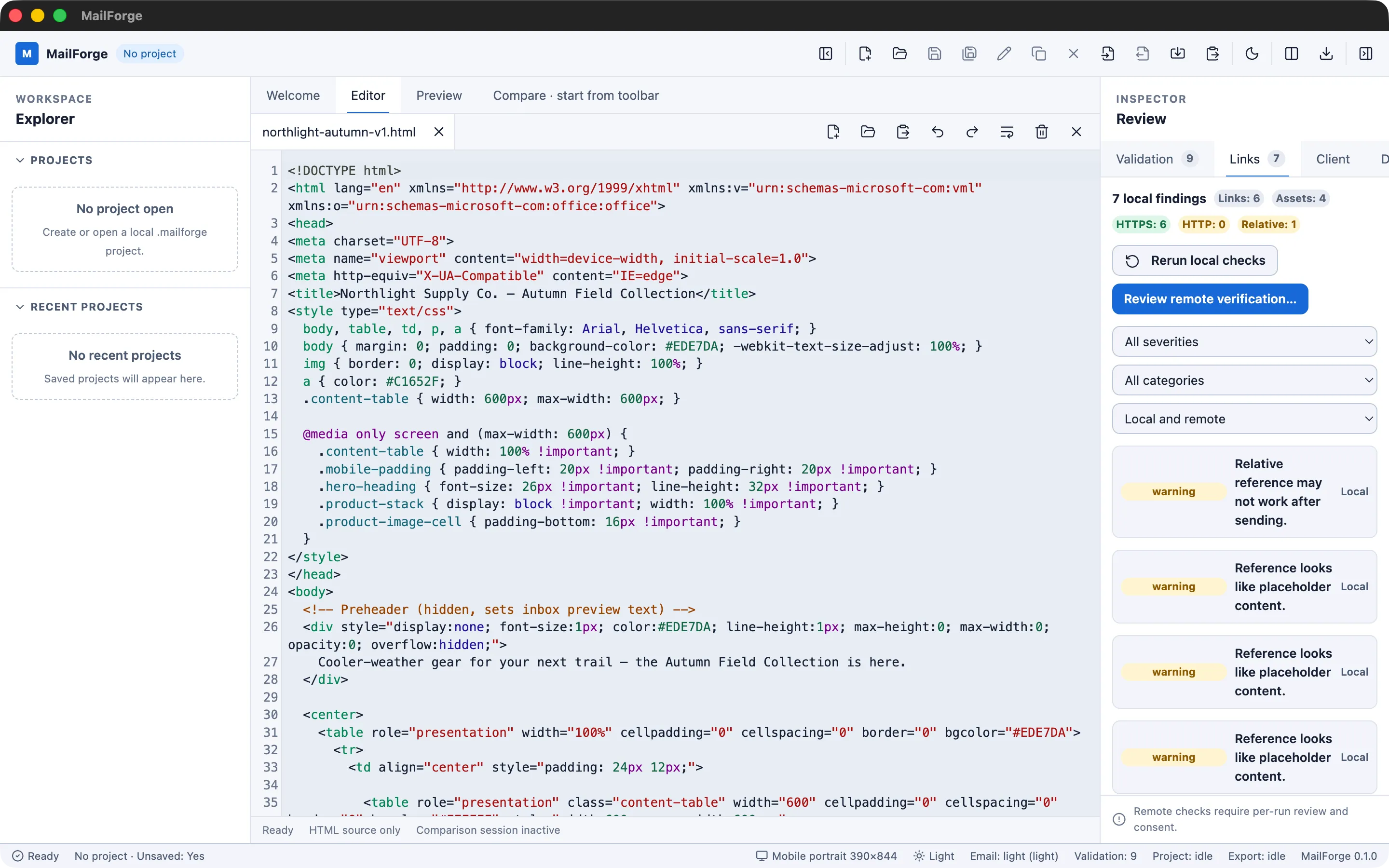

MailForge's Links & Assets inspector showing seven local findings, including a flagged relative image reference and the remote-verification consent entry point. — Seven local Links & Assets findings, including a flagged relative image reference and the entry point for consent-gated remote verification.

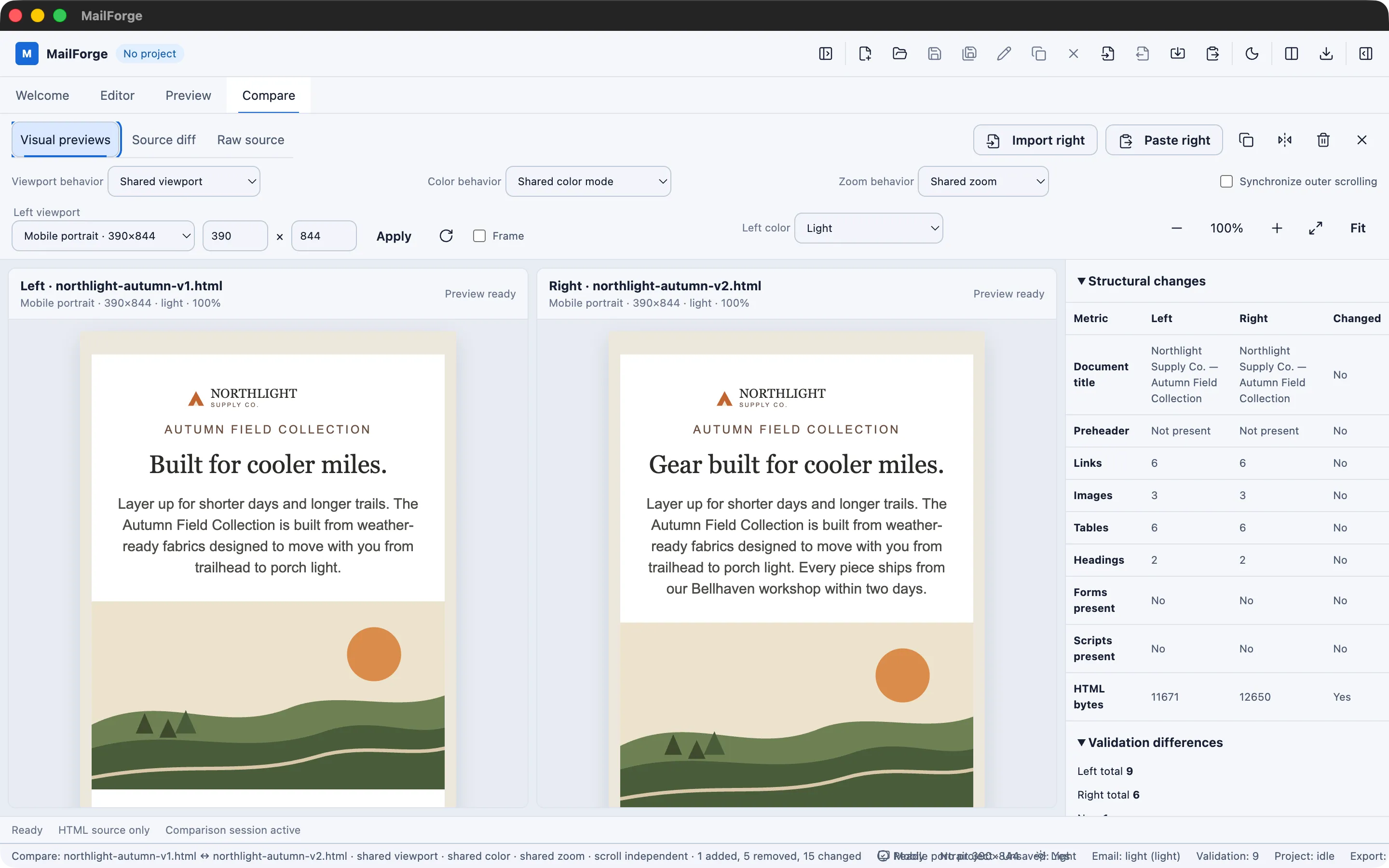

MailForge's Compare view with the Northlight Autumn v1 and v2 headlines shown side by side, alongside a structural and validation change summary. — Comparing two fixture versions — a headline change, a structural summary, and a validation-count drop from 9 to 6 findings.

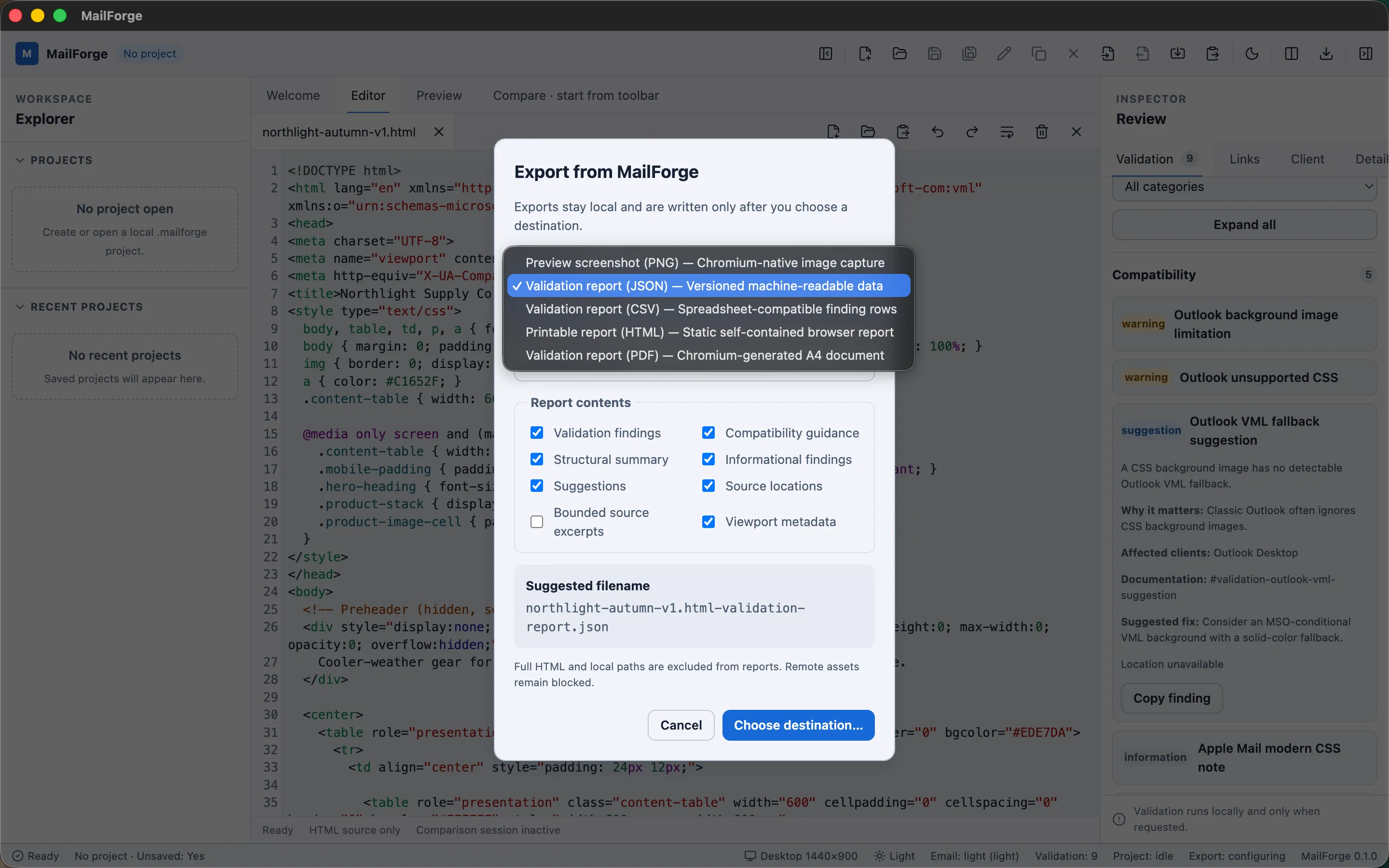

MailForge's Export dialog listing five local output formats: PNG, JSON, CSV, HTML, and PDF, with report-content options and a note that full HTML and local paths are excluded. — The export dialog, listing five local output formats: PNG, JSON, CSV, HTML, and PDF.

Known Limitations

Single active document at a time: no multi-document workspace.
No autosave or crash recovery (an explicit MVP scope decision, not an oversight).
Compatibility guidance is heuristic, based on documented client rendering behavior, not live emulation or testing inside Gmail, Outlook, Apple Mail, or any real inbox.
Remote preview resources (images, fonts, stylesheets) are blocked by default, so an email relying on remote assets can look different than it would in a real inbox.
Public distribution (code signing, notarization, and Windows/Linux GUI verification) is intentionally deferred by the owner, not a defect.

Outcome

Completed a functional local-use MVP: a privacy-aware architecture, 281 automated tests (verified 2026-08-08), and repeatable QA workflows spanning responsive preview, validation, compatibility guidance, comparison, and export. Used a fictional fixture ("Northlight Supply Co.") to produce these public-safe portfolio screenshots without exposing any real project content.
